Introduction

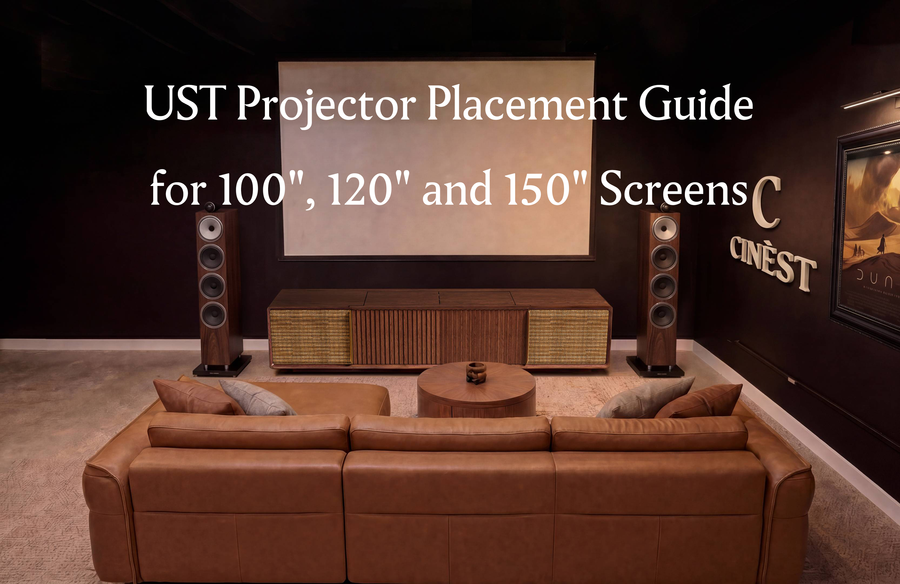

Correct UST projector placement is more than pushing the unit close to the wall. A 100-inch, 120-inch, or 150-inch screen changes image geometry, screen height, furniture depth, and viewing comfort. Use this ultra short throw projector setup guide to plan from the projector manual outward—not from a cabinet you already own.
Start With the Projector, Not the Furniture
Every model has its own screen-size chart. Confirm lens-to-screen measurement, vertical offset, projector footprint, and ventilation clearance. These numbers decide whether the image lands inside the screen without excessive digital correction.
Projector throw distance matters: a small front-to-back move can change image size. Leave an adjustment margin instead of locking the projector into one fixed position.
Record These Measurements First
-
Screen diagonal and aspect ratio
-
Desired screen-bottom height
-
Lens-to-screen distance for your model
-
Projector depth and rear cable bend space
-
Cabinet top height, usable depth, and airflow path
Placement Priorities by Screen Size
A larger picture does not automatically need a deeper room, but it does require more precise physical setup.
|
Screen Size |
Primary Placement Focus |
Approx. Lens-to-Screen Distance* |
Common Mistake |
|
100" |
Confirm height and lens distance |
About 18–22 in |
Assuming every low TV stand will fit |
|
120" |
Preserve front-to-back adjustment |
About 21–26 in |
Moving the cabinet without retesting |
|
150" |
Maximize stability and screen precision |
About 26–33 in |
Using keystone to hide major errors |
100-Inch Screen: Build a Reliable Baseline
A 100-inch image is often the easiest UST projector placement starting point. In many setups, the projector lens sits roughly 18 to 22 inches from the screen. Level the projector, test the image fit, and confirm the screen edges before mounting anything permanently. For model-specific projector throw distance, check the manufacturer’s installation chart or use a projector throw distance calculator.
For a clean 100-inch installation, a four-way adjustable media console can make small height and depth corrections easier without books or improvised risers. Stable adjustment, cooling, cable routing, and rear access also help keep the setup practical over time.
120-Inch Screen: Protect Your Adjustment Margin
For a 120-inch screen, the projector may sit around 21 to 26 inches from the screen. At this size, small changes in cabinet height or depth become easier to notice along the screen edges. Confirm image width and screen-bottom height before fixing the screen, then leave enough usable depth for the projector body, rear cables, ventilation, and minor front-to-back adjustments.
A cabinet may look deep enough externally while offering too little usable platform space once connectors and airflow are considered. For a wider checklist, see how to choose a media console for a UST setup.
150-Inch Screen: Plan It as a Complete System
A 150-inch screen may require approximately 26 to 33 inches between the lens and screen, depending on the projector model. First, confirm that the manufacturer officially supports a 150-inch image, then test the complete layout before permanent mounting. At this scale, small errors in level, screen flatness, and projector alignment become much more visible.
Use a stable support surface and leave clearance for speakers, heat dissipation, rear cables, and future device changes. Do not assume the 100-inch position will scale unchanged. For more guidance on physical image fit, read why UST projector images may not fit the screen.
Match the Console’s Adjustment Range to Your Screen Plan
Screen size tells you where a projector needs to sit, but it does not automatically confirm that a cabinet can support that position. This purpose-built UST projector console is available in 86.5-inch and 102.5-inch widths, with a 21-inch depth and 18-inch overall height. Its 28 × 14.5 × 8-inch projector mount adds up to 4.5 inches of vertical adjustment and 10.5 inches of horizontal travel, giving installers useful room to refine lens placement after the cabinet is in the room.
Whether you are planning a 100-inch, 120-inch, or larger screen, always compare the projector manufacturer’s placement chart with the console’s usable adjustment range before ordering. Beyond alignment flexibility, thermostatic cooling, concealed power routing, an IR receiver, physical controls, and removable rear panels help keep the setup easier to operate, maintain, and upgrade over time.
Use Physical Alignment Before Digital Correction
Digital keystone can help with a small final touch, but it should not rescue incorrect height, depth, or angle. Level the projector, center it to the screen, set the manufacturer’s projector throw distance, and adjust depth until the image fits.
A well-planned UST projector cabinet keeps the projector stable while allowing measured changes. It should also support airflow, concealed cables, and rear access. For a closer look at screen fit, read why physical placement matters.
A Simple Placement Sequence
-
Level the projector on its intended support surface.
-
Follow the manual’s placement figure for the target screen size.
-
Test image width and height before fixing the screen.
-
Adjust depth and height physically before using software.
-
Check ventilation, cable clearance, and remote access.
-
Mark or save the calibrated position once the picture is square.
FAQ
Where should I measure from when positioning a UST projector?
Use the projector manual’s stated reference point, which may be the lens, chassis edge, or a marked point on the unit. Measuring from the cabinet front instead can produce an inaccurate placement result.
How much ventilation space does a UST projector need inside a cabinet?
Follow the projector manufacturer’s clearance guidance, especially around intake and exhaust vents. Avoid enclosing the unit tightly, blocking airflow with panels, or placing heat-producing devices directly beside it.
Can a slightly uneven floor affect UST projector alignment?
Yes. Small changes in level can make the image appear uneven along the screen edges. Level the cabinet and projector support surface before making height or depth adjustments.
What should I do if the top corners of the image do not align?
First check projector level, screen flatness, and physical distance from the screen. Adjust the projector position gradually before using digital correction, which should only handle minor final refinements.
Do rear cables affect UST projector placement?
They can. Thick HDMI, power, and audio cables may require additional rear clearance and can prevent the projector from reaching its correct position. Use flexible cable routing and avoid sharp bends.
Conclusion
Accurate UST projector placement begins with the projector’s own installation chart and ends with a stable, serviceable setup. Whether you choose 100, 120, or 150 inches, confirm lens distance, screen-bottom height, and usable cabinet space before mounting. Physical adjustment, ventilation, and clean access make the system easier to calibrate and simpler to live with.
